PRODUCT

We will continue to improve our own strength and service level to provide global customers with better quality, more effcient and environmentally friendly metal materials.

Galvalume Steel Sheet
Galvanized zinc coil is based on cold-rolled steel plate, which is solidified by 55% aluminum, 43.4 zinc and 1.6 silicon at 600 ℃. It combines the physical protection and high durability of aluminum with the electrochemical protection of zinc. Also known as aluminized zinc steel coil.
Classification
Galvanized Products
Product Description
Scope of Application

Construction industry: such as roof, internal and external wall panels, sound insulation walls, pipes, garages, etc.
Automotive industry: such as mufflers, exhaust pipes, wiper accessories, fuel tanks, truck containers, etc.
Household appliances: such as refrigerator backplane, air conditioner, microwave oven, LED backlight, electric cabinet, etc
Agricultural use: such as greenhouse, granary, pig farm, chicken coop, etc
Other industries: such as heat exchangers, dryers, etc.

Product Parameters

Product Name

Galvalume Steel Sheet

Echnical Standard

EN10147, EN10142, DIN 17162, JIS G3302, ASTM A653  JIS G3302,ASTM A653M,EN10327,DIN17162,EN 10142,EN10292,

Steel Grade

Dx51D, Dx52D, Dx53D, DX54D, S220GD, S250GD, S280GD, S350GD, S350GD, S550GD; SGCC, SGHC, SGCH, SGH340, SGH400, SGH440, SGH490

,SGH540, SGCD1, SGCD2, SGCD3, SGC340, SGC340 , SGC490, SGC570; SQ CR22 (230), SQ CR22 (255), SQ CR40 (275), SQ CR50 (340), SQCR80(550), CQ, FS, DDS,

EDDS, SQ CR33 (230), SQ CR37 (255), SQCR40 (275), SQ CR50 (340), SQ CR80 (550); or Customer’s Requirement

Type

Coil/Sheet/Plate/Strip

Thickness

0.12-6.00mm,or customer's requirement

Width

600mm-1500mm, according to customer's requirement

Type of Coating

Hot Dipped Galvanized Steel(HDGI)

Zinc Coating

30-275g/m2

Surface Treatment

Passivation(C), Oiling(O), Lacquer sealing(L), Phosphating(P), Untreated(U) galvanized,PVC,black and color painting,transparent oil,anti rust oil

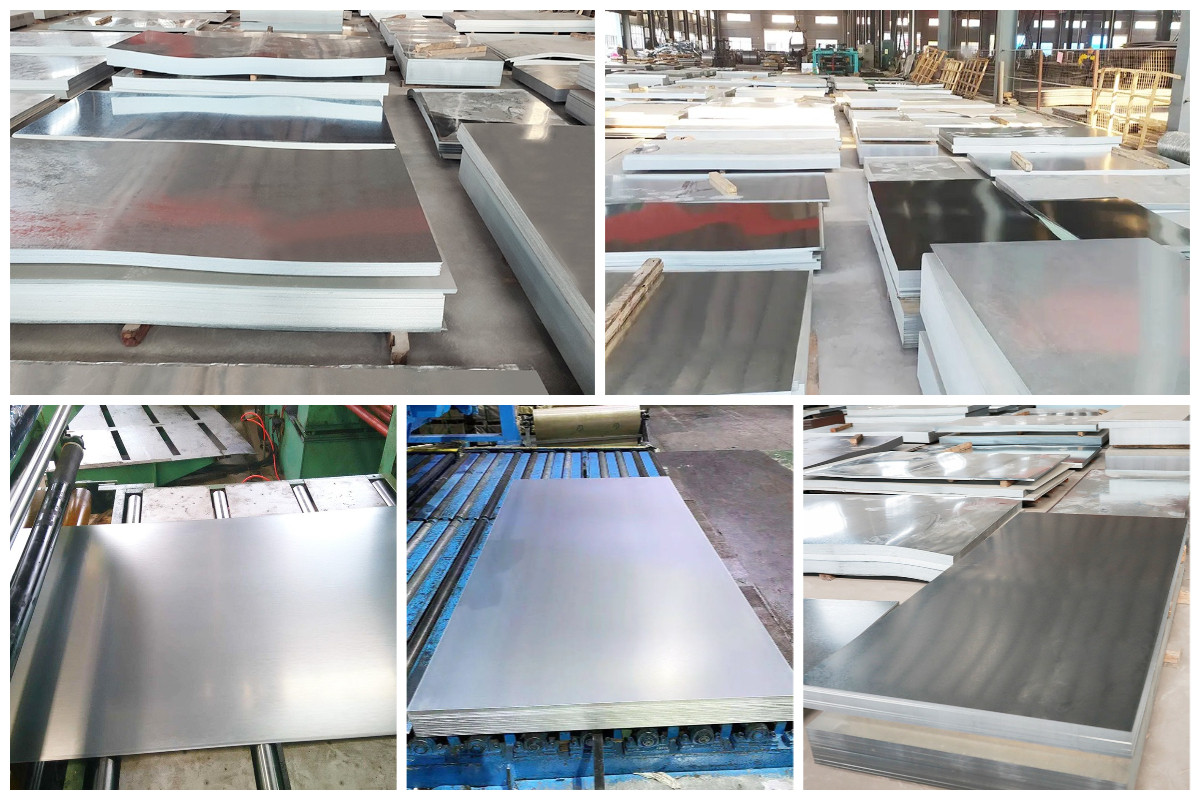

Product Display

镀铝锌板
